Introduction
Welcome to this hands-on guide to fine-tuning image classifiers with PyTorch and the timm library! Fine-tuning refers to taking a pre-trained model and adjusting its parameters using a new dataset to enhance its performance on a specific task. We can leverage pre-trained models to achieve high performance even when working with limited data and computational resources. The timm library further aids our goal with its wide range of pre-trained models, catering to diverse needs and use cases.
In this tutorial, we develop a hand gesture recognizer. Hand gesture recognition has many real-world applications, ranging from human-computer interaction and sign-language translation to creating immersive gaming experiences. By the end of this tutorial, you will have a practical hand gesture recognizer and a solid foundation to apply to other image classification tasks. You’ll also be able to interact with a model trained with this tutorial’s code through an in-browser demo that runs locally on your computer. Check out the video below for a quick preview.
This guide is structured so that you don’t need a deep understanding of deep learning to complete it. If you follow the instructions, you can make it through! Yet, if you are eager to delve deeper into machine learning and deep learning, I recommend fast.ai’s Practical Deep Learning for Coders course. The course employs a hands-on approach that starts you off training models from the get-go and gradually digs deeper into the foundational concepts.
Let’s dive in and start training our hand gesture classifier!
Getting Started with the Code
The tutorial code is available as a Jupyter Notebook, which you can run locally or in a cloud-based environment like Google Colab. If you’re new to these platforms or need some guidance setting up, I’ve created dedicated tutorials to help you:
No matter your choice of environment, you’ll be well-prepared to follow along with the rest of this tutorial. You can download the notebook from the tutorial’s GitHub repository or open the notebook directly in Google Colab using the links below.
Setting Up Your Python Environment
Before diving into the code, we’ll create a Python environment and install the necessary libraries. Creating a dedicated environment will ensure our project has all its dependencies in one place and does not interfere with other Python projects you may have.
Please note that this section is for readers setting up a local Python environment on their machines. If you’re following this tutorial on a cloud-based platform like Google Colab, the platform already provides an isolated environment with many Python libraries pre-installed. In that case, you may skip this section and directly proceed to the code sections. However, you may still need to install certain libraries specific to this tutorial using similar pip install commands within your notebook. The dedicated Colab Notebook contains the instructions for running it in Google Colab.
Creating a Python Environment
First, we’ll create a Python environment using Conda. Conda is a package manager that can create isolated Python environments. These environments are like sandboxed spaces where you can install Python libraries without affecting the rest of your system.
To create a new Python environment, open a terminal with Conda/Mamba installed and run the following commands:
The first command creates a new Python environment named pytorch-env using Python 3.10. The -y flag confirms that we want to proceed with the installation. After building the environment, the second command activates it, setting it as the active Python environment.
Installing PyTorch
PyTorch is a popular open-source machine learning framework that enables users to perform tensor computations, build dynamic computational graphs, and implement custom machine learning architectures. To install PyTorch with CUDA support (which allows PyTorch to leverage NVIDIA GPUs for faster training), we’ll use the following command:
Installation instructions for specific hardware and operating systems are available in the “Get Started” section of the PyTorch website.
Installing Additional Libraries
We also need to install some additional libraries for our project. If you’re new to Python or haven’t used some of these packages before, don’t worry.
Here’s a brief overview:
datasets: A library for accessing and sharing datasets for Audio, Computer Vision, and Natural Language Processing (NLP) tasks.jupyter: An open-source web application that allows you to create and share documents that contain live code, equations, visualizations, and narrative text.matplotlib: This package provides a comprehensive collection of visualization tools to create high-quality plots, charts, and graphs for data exploration and presentation.pandas: This package provides fast, powerful, and flexible data analysis and manipulation tools.pillow: The Python Imaging Library adds image processing capabilities.timm: The timm library provides state-of-the-art (SOTA) computer vision models, layers, utilities, optimizers, schedulers, data loaders, augmentations, and training/evaluation scripts.torcheval: A library that provides simple and easy-to-use tooling for evaluating PyTorch models.tqdm: A Python library that provides fast, extensible progress bars for loops and other iterable objects in Python.Jupyter Client: This package contains the reference implementation of the Jupyter protocol. It also provides client and kernel management APIs for working with kernels. We will install an older version than the one included with Jupyter (<8) to avoid an issue that causes the training notebook to freeze during training (link).PyZMQ: This package provides Python bindings for ZeroMQ, a lightweight and fast messaging implementation used by Jupyter Notebooks. We will install an older version than the one included with Jupyter (<25) to avoid an issue that causes the training notebook to freeze during training (link).
To install these additional libraries, we’ll use the following command:
Installing Utility Packages
Finally, we will install some utility packages I made to help us handle images (cjm_pil_utils), interact with PyTorch (cjm_pytorch_utils), and work with pandas DataFrames (cjm_pandas_utils):
Now, our environment is all setup and ready to go! Remember, these libraries are just tools. If you don’t fully understand them yet, don’t worry. As we go through the tutorial, we’ll learn more about these tools and see them in action.
Launching Jupyter Notebook
Now that our environment is ready, it’s time to launch Jupyter Notebook. Jupyter Notebooks provide an interactive coding environment where we’ll work for the rest of this tutorial. To launch Jupyter Notebook, navigate to the location where you have stored the tutorial notebook (if you downloaded it) from a terminal with the pytorch-env environment active, and type the following command:
This command will open a new tab in your default web browser, showing the Jupyter file browser. From the Jupyter file browser, you can open the tutorial notebook or create a new one to start the next section. Remember: If you close your terminal, the Jupyter Notebook server will stop. So, keep your terminal running while you’re working on the tutorial.
Importing the Required Dependencies
With our environment set up, it’s time to start the coding part of this tutorial. First, we will import the necessary Python packages into our Jupyter Notebook. Here’s a brief overview of how we’ll use these packages:
- HuggingFace Datasets dependencies: I host the dataset on HuggingFace Hub, and this package allows us to load our dataset with a single line of code.
- matplotlib: We use the matplotlib package to explore the dataset samples and class distribution.
- NumPy: We’ll use it to store PIL Images as arrays of pixel values.
- pandas: We use Pandas
DataFrameandSeriesobjects to format data as tables. - PIL (Pillow): We’ll use it for opening and working with image files.
- Python Standard Library dependencies: These are built-in modules that come with Python. We’ll use them for various tasks like handling file paths (
pathlib.Path), manipulating JSON files (json), random number generation (random), multiprocessing (multiprocessing), mathematical operations (math), copying Python objects (copy), file matching patterns (glob), working with dates and times (datetime), and interacting with the operating system (os). - PyTorch dependencies: We’ll use PyTorch’s various modules for building our model, processing data, and training.
- timm library: We’ll use the timm library to download and prepare a pre-trained model for fine-tuning.
- tqdm: We use the library to track the progress of longer processes like training.
- Utility functions: These are helper functions from the packages we installed earlier. They provide shortcuts for routine tasks and keep our code clean and readable.
Having successfully imported the dependencies, we are ready to move to the next step.
Setting Up the Project
In this section, we set up some basics for our project. First, we set a seed for generating random numbers using the set_seed function from the cjm_pytorch_utils package.
Setting a Random Number Seed
A fixed seed value is helpful when training deep-learning models for reproducibility, debugging, and comparison. Having reproducible results allows others to confirm your findings. Using a fixed seed can make it easier to find bugs as it ensures the same inputs produce the same outputs. Likewise, using fixed seed values lets you compare performance between models and training parameters. That said, it’s often a good idea to test different seed values to see how your model’s performance varies between them. Also, don’t use a fixed seed value when you deploy the final model.
Setting the Device and Data Type
Next, we determine the device to run our computations on and the data type of our tensors using the get_torch_device function from the cjm_pytorch_utils package.
PyTorch can run on either a CPU or a GPU. The get_torch_device function will automatically check if a supported Nvidia or Mac GPU is available. Otherwise, it will use the CPU. We’ll use the device and type variables to ensure all tensors and model weights are on the correct device and have the same data type. Otherwise, we might get errors.
('cuda', torch.float32)Setting the Directory Paths
We’ll then set up a directory for our project to store our results and other related files. The code currently creates the folder in the current directory (./). Update the path if that is not suitable for you.
pytorch-timm-image-classifierWe also need a place to store our datasets. We’re going to create a directory for this purpose. If running locally, select a suitable folder location to store the dataset. For a cloud service like Google Colab, you can set it to the current directory.
Dataset Directory: /mnt/980_1TB_1/DatasetsDouble-check the project and dataset directories exist in the specified paths and that you can add files to them before continuing.
At this point, our environment is set up and ready to go. We’ve set our random seed, determined our computation device, and set up directories for our project and dataset. In the next section, we will download and explore the dataset.
Loading and Exploring the Dataset
Now that we set up our project, we can start working with our dataset. The dataset we’ll use is a downscaled subset of HaGRID (HAnd Gesture Recognition Image Dataset) that I modified for image classification tasks. The dataset contains images for 18 distinct hand gestures and an additional no_gesture class for idle hands. The dataset is approximately 3.8 GB, but you will need about 7.6 GB to store the archive file and extracted dataset.
The following steps demonstrate how to load the dataset from the HuggingFace Hub, inspect the dataset, and visualize some sample images.
Setting the Dataset Path
We’ll first set up the path for our dataset. We’ll construct the HuggingFace Hub dataset name by combining the username and the dataset name. We then define where to cache the dataset locally.
HuggingFace Dataset: cj-mills/hagrid-classification-512p-no-gesture-150k-zip
Dataset Path: /mnt/980_1TB_1/Datasets/hagrid-classification-512p-no-gesture-150k-zipDownloading the Dataset
We’ll now download the dataset from the HuggingFace Hub using the load_dataset function. We’ll set the number of worker processes for loading data to the number of CPU cores available on your machine.
Dataset({
features: ['image', 'label'],
num_rows: 153735
})The dataset summary indicates there are 153,735 samples. Each sample has an image and a label. The label values for each dataset sample are index values corresponding to class names. For example, the label value 0 corresponds to the call gesture.
Deleting the Archive File
After loading the dataset, we can delete the downloaded archive file to free up some space. We define a helper function, delete_files_in_directory, which deletes all files in a specified directory.
We’ll then use this function to delete the archive file.
Inspecting the Class Distribution
Next, we get the names of all the classes in our dataset and inspect the distribution of images among these classes. A balanced dataset (where each class has approximately the same number of instances) is ideal for training a machine-learning model.
Get image classes
| 0 | |
|---|---|
| 0 | call |
| 1 | dislike |
| 2 | fist |
| 3 | four |
| 4 | like |
| 5 | mute |
| 6 | no_gesture |
| 7 | ok |
| 8 | one |
| 9 | palm |
| 10 | peace |
| 11 | peace_inverted |
| 12 | rock |
| 13 | stop |
| 14 | stop_inverted |
| 15 | three |
| 16 | three2 |
| 17 | two_up |
| 18 | two_up_inverted |

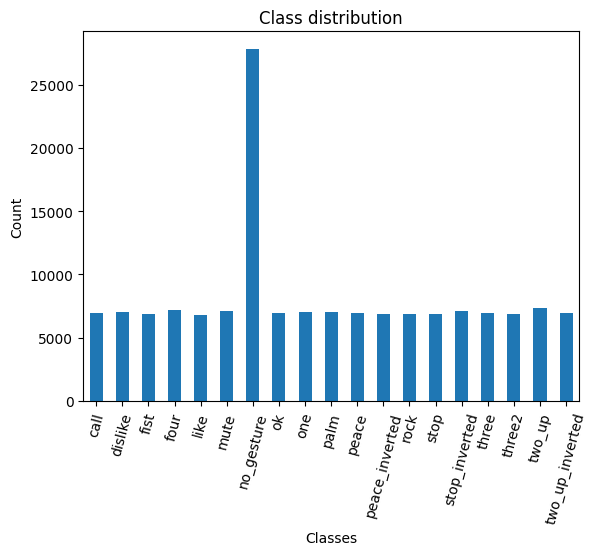

Visualize the class distribution
Each class, excluding the no_gesture class, has roughly the same number of samples. The no_gesture class contains approximately four times as many images because of the immense variety of non-matching hand positions.
Visualizing Sample Images

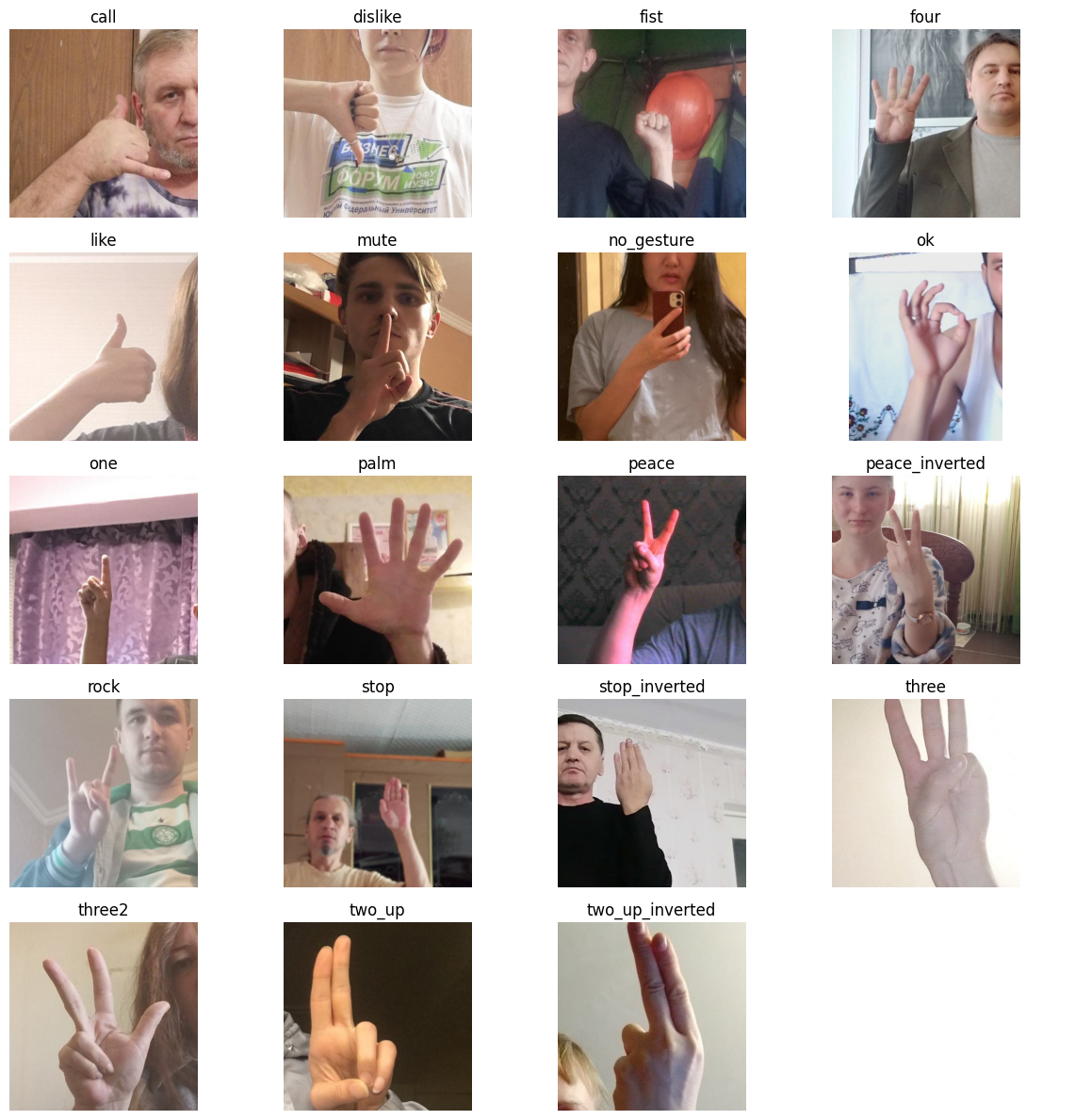

Lastly, we will visualize the first sample image of each class in our dataset. Visualizing the samples helps us get a feel for the kind of images we’re working with and whether they’re suitable for the task at hand.
We have loaded the dataset, inspected its class distribution, and visualized some sample images. In the next section, we will select and load our model.
Selecting a Model
Choosing a suitable model for your task is crucial for the success of your machine learning project. The model you select will depend on several factors, including the size and nature of your dataset, the problem you’re trying to solve, and the computational resources you have at your disposal.
Exploring Available Models
You can explore the pretrained models available in the timm library using the timm.list_models() method. The library has hundreds of models, so we’ll narrow our search to the ResNet18 family of models. ResNet 18 models are popular for image classification tasks due to their balance of accuracy and speed.
| 0 | |
|---|---|
| 0 | resnet18.a1_in1k |
| 1 | resnet18.a2_in1k |
| 2 | resnet18.a3_in1k |
| 3 | resnet18.fb_ssl_yfcc100m_ft_in1k |
| 4 | resnet18.fb_swsl_ig1b_ft_in1k |
| 5 | resnet18.gluon_in1k |
| 6 | resnet18.tv_in1k |
| 7 | resnet18d.ra2_in1k |
Choosing the ResNet18-D Model
For this tutorial, I went with the pretrained ResNet 18-D model. This model’s balance of accuracy and speed makes it suitable for real-time applications, such as hand gesture recognition. While this model is a good all-rounder, others may work better for specific applications. For example, some models are designed to run on mobile devices and may sacrifice some accuracy for improved performance. Whatever your requirements are, the timm library likely has a suitable model for your needs. Feel free to try different models and see how they compare.
Inspecting the ResNet18-D Model Configuration
Next, we will inspect the configuration of our chosen model. The model config gives us information about the pretraining process for the model.
| 0 | |
|---|---|
| url | github.com/rwightman/pytorch-image-models/releases/download/v0.1-weights/resnet18d_ra2-48a79e06.pth |
| hf_hub_id | timm/ |
| custom_load | False |
| input_size | (3, 224, 224) |
| test_input_size | (3, 288, 288) |
| fixed_input_size | False |
| interpolation | bicubic |
| crop_pct | 0.875 |
| test_crop_pct | 0.95 |
| crop_mode | center |
| mean | (0.485, 0.456, 0.406) |
| std | (0.229, 0.224, 0.225) |
| num_classes | 1000 |
| pool_size | (7, 7) |
| first_conv | conv1.0 |
| classifier | fc |
| origin_url | github.com/huggingface/pytorch-image-models |
Retrieving Normalization Statistics
Before we can use the ResNet18-D model, we need to normalize our dataset. Normalization is a process that changes the range of pixel intensity values to make the neural network converge faster during training. It is performed by subtracting the mean from the pixel values and dividing by the standard deviation of the dataset. The mean and standard deviation values specific to the dataset used in the pretraining process of our model are called normalization statistics. To do this, we will retrieve the normalization statistics (mean and std) specific to our pretrained model.
((0.485, 0.456, 0.406), (0.229, 0.224, 0.225))Loading the ResNet18-D Model
We can now load our model. We’ll set the number of output classes equal to the number of image classes in our dataset. We’ll also specify the device and data type for the model.
Selecting the Model
With our model loaded, we can now select it for training.
Summarizing the Model
Finally, let’s generate a summary of our model. The summary gives us an overview of its structure and performance characteristics.
| Type | # Parameters | # Trainable Parameters | Size (bytes) | Forward FLOPs | Backward FLOPs | In size | Out size | |
|---|---|---|---|---|---|---|---|---|
| 0 | ResNet | 11.2 M | 11.2 M | 44.9 M | 2.7 G | 5.3 G | [1, 3, 256, 256] | [1, 19] |
| 2 | Conv2d | 864 | 864 | 3.5 K | 14.2 M | 14.2 M | [1, 3, 256, 256] | [1, 32, 128, 128] |
| 5 | Conv2d | 9.2 K | 9.2 K | 36.9 K | 150 M | 301 M | [1, 32, 128, 128] | [1, 32, 128, 128] |
| 8 | Conv2d | 18.4 K | 18.4 K | 73.7 K | 301 M | 603 M | [1, 32, 128, 128] | [1, 64, 128, 128] |
| 14 | Conv2d | 36.9 K | 36.9 K | 147 K | 150 M | 301 M | [1, 64, 64, 64] | [1, 64, 64, 64] |
| 19 | Conv2d | 36.9 K | 36.9 K | 147 K | 150 M | 301 M | [1, 64, 64, 64] | [1, 64, 64, 64] |
| 23 | Conv2d | 36.9 K | 36.9 K | 147 K | 150 M | 301 M | [1, 64, 64, 64] | [1, 64, 64, 64] |
| 28 | Conv2d | 36.9 K | 36.9 K | 147 K | 150 M | 301 M | [1, 64, 64, 64] | [1, 64, 64, 64] |
| 33 | Conv2d | 73.7 K | 73.7 K | 294 K | 75.5 M | 150 M | [1, 64, 64, 64] | [1, 128, 32, 32] |
| 38 | Conv2d | 147 K | 147 K | 589 K | 150 M | 301 M | [1, 128, 32, 32] | [1, 128, 32, 32] |
| 43 | Conv2d | 8.2 K | 8.2 K | 32.8 K | 8.4 M | 16.8 M | [1, 64, 32, 32] | [1, 128, 32, 32] |
| 46 | Conv2d | 147 K | 147 K | 589 K | 150 M | 301 M | [1, 128, 32, 32] | [1, 128, 32, 32] |
| 51 | Conv2d | 147 K | 147 K | 589 K | 150 M | 301 M | [1, 128, 32, 32] | [1, 128, 32, 32] |
| 56 | Conv2d | 294 K | 294 K | 1.2 M | 75.5 M | 150 M | [1, 128, 32, 32] | [1, 256, 16, 16] |
| 61 | Conv2d | 589 K | 589 K | 2.4 M | 150 M | 301 M | [1, 256, 16, 16] | [1, 256, 16, 16] |
| 66 | Conv2d | 32.8 K | 32.8 K | 131 K | 8.4 M | 16.8 M | [1, 128, 16, 16] | [1, 256, 16, 16] |
| 69 | Conv2d | 589 K | 589 K | 2.4 M | 150 M | 301 M | [1, 256, 16, 16] | [1, 256, 16, 16] |
| 74 | Conv2d | 589 K | 589 K | 2.4 M | 150 M | 301 M | [1, 256, 16, 16] | [1, 256, 16, 16] |
| 79 | Conv2d | 1.2 M | 1.2 M | 4.7 M | 75.5 M | 150 M | [1, 256, 16, 16] | [1, 512, 8, 8] |
| 84 | Conv2d | 2.4 M | 2.4 M | 9.4 M | 150 M | 301 M | [1, 512, 8, 8] | [1, 512, 8, 8] |
| 89 | Conv2d | 131 K | 131 K | 524 K | 8.4 M | 16.8 M | [1, 256, 8, 8] | [1, 512, 8, 8] |
| 92 | Conv2d | 2.4 M | 2.4 M | 9.4 M | 150 M | 301 M | [1, 512, 8, 8] | [1, 512, 8, 8] |
| 97 | Conv2d | 2.4 M | 2.4 M | 9.4 M | 150 M | 301 M | [1, 512, 8, 8] | [1, 512, 8, 8] |
We can see from the summary that the ResNet18-D model is about 45 MB in size and needs to perform about 2.7 billion floating-point operations to process a single 256x256 input image. For context, the larger mid-size ResNet50-D model is about 95 MB and performs about 5.7 billion floating-point ops for the same image. On the other end, the tiniest variant of the mobile-optimized MobileNetV3 model is 2.4 MB and only takes about 30 million floating-point operations.
That is valuable information when considering how we will deploy the fine-tuned model. For example, the in-browser demo I mentioned will first download the model to your local machine. The larger the model, the longer it will take for the demo to start. Likewise, the number of floating-point operations will influence what hardware can run the model smoothly. For real-time applications, even milliseconds can matter for inference speed. Inference involves making predictions with a trained model on new, unseen data.
The model architecture also influences inference speed beyond the raw number of floating-point operations. The MobileNetv3 architecture is tuned to mobile phone CPUs, while the ResNet architectures can better leverage larger GPUs.
That completes the model selection and setup. In the next section, we will prepare our dataset for training.
Preparing the Data
Next, we will prepare our data for the model training process. The data preparation involves several steps, such as applying data augmentation techniques, setting up the train-validation split for the dataset, resizing and padding the images, defining the training dataset class, and initializing DataLoaders to feed data to the model.
Selecting a Sample Image
Let’s begin by selecting a random image from the dataset to visualize the data preparation steps.
Image Label: stop
Data Augmentation
Next, we’ll define what data augmentations to apply to images during training. Data augmentation is a technique that effectively expands the size and diversity of a dataset by creating variations of existing samples. It helps the model learn general features instead of memorizing specific examples.
We’ll use trivial augmentation, which applies a single, random transform to each image. This simple method can be highly effective for data augmentation.
However, we’ll need to create a custom version of the TrivialAugmentWide class from PyTorch’s transforms module, as some of the default parameters are not ideal for this dataset. This custom class defines a dictionary of operations for augmenting the images, and we can customize each operation’s parameters.
Trivial Augmentation
You can test the custom augmentation method by applying it to the sample image and displaying the result. Remember, the augmentation should be different each time we use it.
Test the transform
torch.Size([1, 3, 512, 512])
Training-Validation Split
Next, we’ll split the dataset into training and validation sets. The model will use the training set to update its parameters, and we will use the validation set to evaluate the model’s performance on data it has not seen before. Validation sets are needed when training models because we want to verify the model can generalize well to new data before we deploy it.
Get training and validation sets
(138361, 15374)Image Resizing and Padding
Next, we define a class called ResizePad to resize and pad images, making them a uniform size. Making all the input images the same size allows us to feed samples to the model in batches, allowing us the more efficiently leverage our GPU.
Resize Pad Transform
For training, we’ll resize and pad the images to 288x288. That should be large enough for the model to get adequate detail while keeping training time low.
Set training image size
You can test the ResizePad transform on the sample image to see how it resizes and pads the sample. The following code crops the sample image to make the padding more apparent.
Test the transform
Source image: (512, 512)
Cropped image: (512, 256)
Cropped tensor: torch.Size([1, 3, 256, 512])
Padded tensor: torch.Size([1, 3, 288, 288])
Training Dataset Class
Next, we define a custom PyTorch Dataset class that will get used in a DataLoader to create batches. This class fetches a sample from the dataset at a given index and returns the transformed image and its corresponding label index.
Image Transforms
We’ll then define the transformations for the training and validation datasets. Note that we only apply data augmentation to the training dataset. Both datasets will have their images resized and padded and the pixel values normalized.
Initialize Datasets
We instantiate the PyTorch datasets using the dataset splits, class names, and defined transformations.
Training dataset size: 138361
Validation dataset size: 15374Inspect Samples
Let’s inspect a sample from the training and validation sets to verify that the data preparation steps get applied correctly.
Inspect training set sample
Label: dislike
Inspect validation set sample
Label: no_gesture
We then define the batch size for training and initialize the DataLoaders, which are used to efficiently create batches of data for the model to process during training.
Training Batch Size
Next, we set the batch size for training. This number indicates how many sample images get fed to the model at once. The larger the batch size, the more GPU memory we need. The current batch size should be fine for most modern GPUs. If you still get an out-of-memory error, try lowering the batch size to 8, then restart the Jupyter Notebook.
Initialize DataLoaders
We initialize the DataLoaders for the training and validation datasets. We’ll set the number of worker processes for loading data to the number of available CPUs.
Number of batches in train DataLoader: 4324
Number of batches in validation DataLoader: 481That completes the data preparation. Now we can finally train our hand gesture recognizer.
Fine-tuning the Model
In this section, we will implement the training code and fine-tune our model. The training process revolves around the concept of an ‘epoch’. Each epoch represents one complete pass through the entire training and validation datasets. To help with this, we will define a function called run_epoch to handle a single training/validation epoch and one called train_loop to execute the main training loop.
Define the Training Loop
Let’s start by defining the run_epoch function. This function runs a single training or validation epoch and calculates the loss and performance metric for the given dataset. The term ‘loss’ refers to a number representing how far our model’s predictions are from the actual values. The goal of training is to minimize this value. We use the autocast context manager to perform mixed precision training. Mixed-precision training involves performing some operations in 16-bit precision to speed up training and reduce memory requirements. Modern GPUs tend to have specialized hardware to accelerate these lower-precision operations, and this feature allows us to utilize that.
This function performs one pass through the given dataset. It first sets the model to training or evaluation mode depending on whether we are training or validating. Then, for each batch of data, it performs a forward pass (calculating the predictions of the model), computes the loss, and then, if in training mode, performs a backward pass to adjust the model’s parameters.
Next, we’ll define the train_loop function, which executes the main training loop. It iterates over each epoch, runs through the training and validation sets, and saves the best model based on the validation loss.
This function coordinates the training process. It runs the previously defined run_epoch function for each epoch in the training process, calculating the training and validation losses. It saves the model state as a checkpoint when the model achieves a lower validation loss. It will also save data such as the current epoch, loss values, metric value, learning rate, and model name to a JSON file. If the run_epoch function returns NaN (Not a Number) or infinity loss values, it halts the training process since this typically indicates an issue with the training.
Set the Model Checkpoint Path
Before we proceed with training, let’s generate a timestamp for the training session and create a directory to store the checkpoints. These checkpoints will allow us to save the model state periodically. That enables us to load the model checkpoint later to resume training, export the model to a different format or perform inference directly.
pytorch-timm-image-classifier/2023-05-22_16-35-03/resnet18d.pthConfigure the Training Parameters
Now, let’s configure the parameters for training. We’ll define the learning rate, number of training epochs, optimizer, learning rate scheduler, and performance metric and check for CUDA-capable GPU availability. The learning rate determines how much we adjust the model in response to the estimated error each time the weights are updated. Choosing an optimal learning rate is essential for good model performance.
We’re using AdamW as our optimizer, which includes weight decay for regularization, and the OneCycleLR scheduler to adjust the learning rate during training. The one-cycle learning rate policy is a training approach where the learning rate starts low, increases gradually to a maximum, then decreases again, all within a single iteration or epoch, aiming to converge faster and yield better performance.
We’ll use Multiclass Accuracy for our performance metric as this is a multiclass classification problem where each image falls into one of many classes.
Train the Model
Finally, we can train the model using the train_loop function. Training time will depend on the available hardware. Feel free to take a break if the progress bar indicates it will take a while.
Training usually takes around 1 hour and 20 minutes on the free GPU tier of Google Colab.
Epochs: 100%|█████████| 3/3 [11:15<00:00, 224.96s/it]
Train: 100%|██████████| 4324/4324 [03:29<00:00, 21.75it/s, accuracy=0.894, avg_loss=0.374, loss=0.0984, lr=0.000994]
Eval: 100%|██████████| 481/481 [00:17<00:00, 50.42it/s, accuracy=0.975, avg_loss=0.081, loss=0.214, lr=]
Train: 100%|██████████| 4324/4324 [03:28<00:00, 22.39it/s, accuracy=0.968, avg_loss=0.105, loss=0.0717, lr=0.000462]
Eval: 100%|██████████| 481/481 [00:16<00:00, 55.14it/s, accuracy=0.988, avg_loss=0.0354, loss=0.02, lr=]
Train: 100%|██████████| 4324/4324 [03:28<00:00, 21.94it/s, accuracy=0.99, avg_loss=0.0315, loss=0.00148, lr=4.03e-9]
Eval: 100%|██████████| 481/481 [00:16<00:00, 53.87it/s, accuracy=0.995, avg_loss=0.0173, loss=0.000331, lr=]At last, we have our hand gesture recognizer. The readout for the final validation run indicates the model achieved an approximate 99.5% accuracy, meaning it missed less than 100 of the 15,374 samples in the validation set. To wrap up the tutorial, we’ll test our fine-tuned model by performing inference on individual images.
Making Predictions with the Model
In this final part of the tutorial, you will learn how to make predictions with the fine-tuned model on individual images, allowing us to see the model in action and assess its performance. Understanding how to apply trained models is crucial for implementing them in real-world applications.
Let’s start by setting the minimum input dimension for inference. We’ll use the same size as the input images we used during training but allow non-square input.
Next, we will randomly select an image from our dataset and resize it to the inference size. The resize_img function will scale the image so the smallest dimension is the specified inference size while maintaining the original aspect ratio.
We then convert the image to a normalized tensor using the pil_to_tensor function and move it to the device where our model resides (CPU or GPU).
With our image prepared, we can now use our model to make a prediction. The following code block runs our model in a no-gradient context using torch.no_grad(). That informs PyTorch that we do not need to keep track of gradients in this operation, saving memory.
After obtaining the raw prediction, we apply the Softmax function to convert these values into probabilities that sum up to 1.
Then, we retrieve the highest confidence score and its corresponding class index. The class index is converted into the actual class name using the train_dataset.classes lookup table.
We then format the prediction data, including the target class, the predicted class, and the confidence score of the prediction, as a Pandas Series and print it.
Target Class: like
Predicted Class: like
Confidence Score: 100.00%Finally, we display the sample image for visual verification.
For this sample, the model was 100% confident in its prediction. The model will likely be less sure about images it has not seen before.
Testing the Model on New Data
Let’s try an image from the free stock photo site, Pexels.
Image already exists.
This image is a bit tricky. The man in the photo makes a rock gesture with their left hand, but their right hand is visible and strongly resembles samples from the no_gesture class. Let’s see what the model predicts using the same approach as above.
Input Size: (288, 416)
Target Class: rock
Predicted Class: rock
Confidence Score: 99.70%
Even though this image is a different shape than the training data and has an idle hand, the model confidently predicts rock as the most likely gesture class.
Saving the Class Labels
Let’s save the dataset class labels in a dedicated JSON file so we don’t need to load the whole dataset to make predictions with the model in the future. I’ll cover how to load the model checkpoint we saved earlier and use it for inference in a future tutorial.
pytorch-timm-image-classifier/2023-05-22_16-35-03/hagrid-classification-512p-no-gesture-150k-zip-classes.jsonWe now have a functioning hand-gesture recognizer and know how to make predictions with it on individual images. Before we wrap up this tutorial, let’s check out the in-browser demo I mentioned at the beginning of the post.
- Don’t forget to download the model checkpoint and class labels from the Colab Environment’s file browser. (tutorial link)
- Once you finish training and download the files, turn off hardware acceleration for the Colab Notebook to save GPU time. (tutorial link)
Exploring the In-Browser Demo
You’ve gotten your hands dirty with the code. Now let’s see our fine-tuned model in action! I’ve set up an online demo that allows you to interact with a hand gesture recognizer trained with this tutorial’s code in your web browser. No downloads or installations are required.
The demo includes sample images that you can use to test the model. Try these images first to see how the model interprets different hand gestures. Once you’re ready, you can switch on your webcam to provide live input to the model.
Online demos are a great way to see and share the fruits of your labor and explore ways to apply your hand gesture recognizer in real-world scenarios.
I invite you to share any interesting results or experiences with the demo in the comments below. Whether it’s a tricky input image the model handles or a surprising failure case, I’d love to hear about it!
Check out the demo below, and have fun exploring!
Conclusion
Congratulations on completing this tutorial on fine-tuning image classifiers with PyTorch and the timm library! You’ve taken significant strides in your machine learning journey by creating a practical hand gesture recognizer.
Throughout this tutorial, we’ve covered many topics, including setting up your Python environment, importing necessary dependencies, project initialization, dataset loading and exploration, model selection, data preparation, and model fine-tuning. Finally, we made predictions with our fine-tuned model on individual images and tested the model with an interactive, in-browser demo.
This hands-on tutorial underscored the practical applications of fine-tuning image classification models, especially when working with limited data and computational resources. The hand gesture recognizer you’ve built has many real-world applications, and you now have a solid foundation to tackle other image classification tasks.
If you’re intrigued by the underlying concepts leveraged in this tutorial and wish to deepen your understanding, I recommend fast.ai’s Practical Deep Learning for Coders course. By the end, you’ll thoroughly understand the model and training code and have the know-how to implement them from scratch.
While our tutorial concludes here, your journey in deep learning is far from over. In the upcoming tutorials, we’ll explore topics such as incorporating preprocessing and post-processing steps into the model, exporting the model to different formats for deployment, using the fine-tuned model to identify flawed training samples in our dataset, and building interactive in-browser demo projects similar to the one featured in this tutorial.
Once again, congratulations on your achievement, and keep learning!
Read more here: Source link
